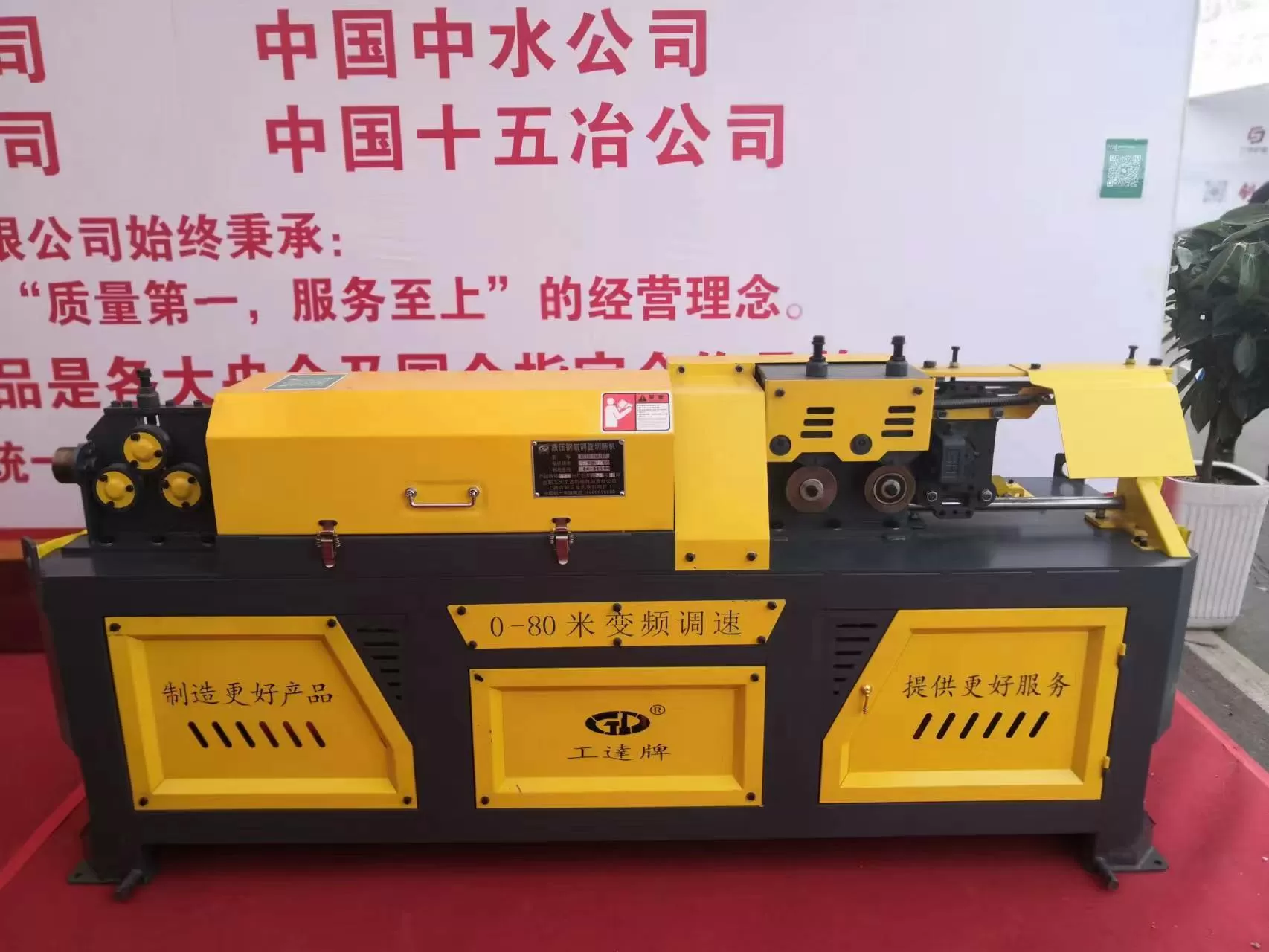

VFD Rebar Straightening & Cutting Machine
VFD-controlled rebar straightening and cutting machine for 4-15 mm bars with hydraulic cutting and ±5 mm accuracy.
Key features at a glance
| Straightening rebar diameter | Round bar / 4-15mm |
|---|---|
| Straightening rebar diameter | Deformed bar / 4-13mm |
| Shearing length | 500-8000mm |
| Rebar cutting accuracy | ±5mm |
| Straightening line speed | 0-80m/min |
Also known as
This machine is often called by these names or searched with these phrases.
Overview
The YGT4-15A(BP) VFD Rebar Straightening & Cutting Machine from Gongda (China Rebar Machinery, chinarebarmachinery.com) is a variable-frequency-drive line built for workshops that need accurate, repeatable cut-to-length output from coiled or bent rebar. It handles 4–15 mm plain round bar and 4–13 mm deformed (threaded) rebar, with hydraulic cutting and a cut-length tolerance of ±5 mm. Gongda is based in Hefei, Anhui, China, with the factory rooted in the electromechanical works of Hefei University of Technology.
Key specifications explained
- Straightening range: 4–15 mm for plain round steel; 4–13 mm for deformed/threaded rebar — a single machine covers common small-to-mid diameter work.
- Cut length: 500–8000 mm, settable for standard cut-to-length batches.
- Cutting accuracy: ±5 mm cut error, supported by hydraulic cutting.
- Straightening line speed: 0–80 m/min via VFD control, allowing speed adjustment by diameter and material condition.
- Hydraulic cutting pressure: 8–10 MPa; hydraulic oil 46# (extreme-pressure anti-wear hydraulic oil).
- Power: 15 kW + 5.5 kW motors at 1450 rpm, 380 V / 50 Hz.
- Working temperature: −5 to 50 °C.
- Dimensions: 2460 × 860 × 1200 mm.
Applications
The YGT4-15A(BP) suits rebar processing plants, precast concrete producers, construction site fabrication yards, and steel service centers. Typical use: straightening coiled rebar, then cutting fixed lengths for stirrups, spacers, mesh, precast elements, and general cut-and-bend production. The VFD drive helps when switching between plain and deformed bar or between diameters, and the 8 m maximum cut length covers most standard fabrication requirements.
Why buy this model from Gongda
- VFD-controlled straightening and cutting for adjustable line speed up to 80 m/min.
- Hydraulic cutting with ±5 mm accuracy for consistent batch output.
- Dual-diameter capability: 4–15 mm plain and 4–13 mm deformed rebar on one unit.
- University-rooted engineering: factory rooted in the electromechanical works of Hefei University of Technology.
- Export experience: machines shipped worldwide, including Russia, Spain, Latin America, the Middle East, Southeast Asia, and Africa.
Shipping, certification & support
Gongda ships on FOB Shanghai / Ningbo / Qingdao. EAC certification is available for relevant markets. Every machine includes a 12-month warranty and spare parts support. Sales and technical communication are available in English, Russian, Spanish, Arabic, French, Portuguese, German, and Indonesian. For specifications, pricing, and lead time, contact WhatsApp +86 193 9277 7259 or visit chinarebarmachinery.com.
Technical Specifications — YGT4-15A(BP)
| Straightening rebar diameter | Round bar / 4-15mm |
|---|---|
| Straightening rebar diameter | Deformed bar / 4-13mm |
| Shearing length | 500-8000mm |
| Rebar cutting accuracy | ±5mm |
| Straightening line speed | 0-80m/min |
| Hydraulic cutting pressure | 8-10Mpa |
| Working temperature | -5-50℃ |
| Hydraulic oil | 46# anti-wear hydraulic oil |
| Motor power | 15KW+5.5KW |
| Motor speed | 1450 rpm |
| Voltage / frequency | 380V / 50HZ |
| Dimensions | 2460 × 860 × 1200 mm |
Compare with related models
| Model | GDQX-500 | YGT4-15A(BP)+ZD-6M-25 | YGT4-15A(BP)Best seller | GQ70A | GQ50A | GD-350ZD |
|---|---|---|---|---|---|---|
| Bar range | 500-12000 | 4-15 | Round bar / 4-15mm | A3 round bar / 70mm | A3 round bar / 6-50mm | W 400 mm × H 350 mm |
| Power | 47.8KW | 7.5KW | 15KW+5.5KW | 11KW | 5.5KW | 4KW |
| Output | 6-10 | 5-8s | 0-80m/min | 26/min | 26/min | 5-90m/min |
| Power supply | 380V | — | 380V / 50HZ | 380V / 50HZ | 380V / 50HZ | — |
Where this machine works
High-rise construction
CNC bending and shearing lines for beams, columns and slab reinforcement.
Precast & prefab plants
Five-head stirrup and forming machines for mass production of cage components.
Bridges & tunnels
Arc benders for tunnel lining, bridge reinforcement and large-radius bends.
Rebar fabricators
Straightening, cutting and thread rolling for custom fabrication shops.
Quality, export packing & after-sales
Run-test
Every machine is run-tested under load and checked against its specification sheet before packing.
Export crating
Anti-rust treatment, film wrapping and reinforced wooden crating protect the machine for sea freight.
Shipping methods
Standard container — small and medium machines (cutters, stirrup machines, welders).
After-sales support
Documentation, remote guidance via video or WhatsApp, and spare parts supply after delivery.
Buying questions
Can you cut and straighten rebar in one machine?
Yes. Our VFD straightening & cutting machines (e.g. YGT4-15A(BP)) straighten Ø4-15 mm round and ribbed bars and cut them to 500-8000 mm with ±5 mm accuracy. For a full line, combine it with a five-head stirrup machine into a straightening-cutting-stirrup production line.
What is the capacity of a CNC five-head stirrup machine?
A five-head machine forms multiple stirrups in one cycle - e.g. ZD-6M-25 processes Ø8x10 bars, Ø10x7, Ø12x5 per stroke at 5-8 seconds per cycle, with ±2 mm length accuracy and ±1° angle accuracy.
