Hydraulic Rebar Shearing Production Line
High-capacity hydraulic rebar shearing production line for cutting ribbed and round bars in mass production.
Key features at a glance
| Max blade shearing force (kN) | 3600 |
|---|---|
| Effective blade width (mm) | 500 |
| Shearing frequency (per min) | 6-10 |
| Rebar feed speed (m/min) | 50 |
| Rebar shearing length range (mm) | 500-12000 |
Also known as
This machine is often called by these names or searched with these phrases.
Overview

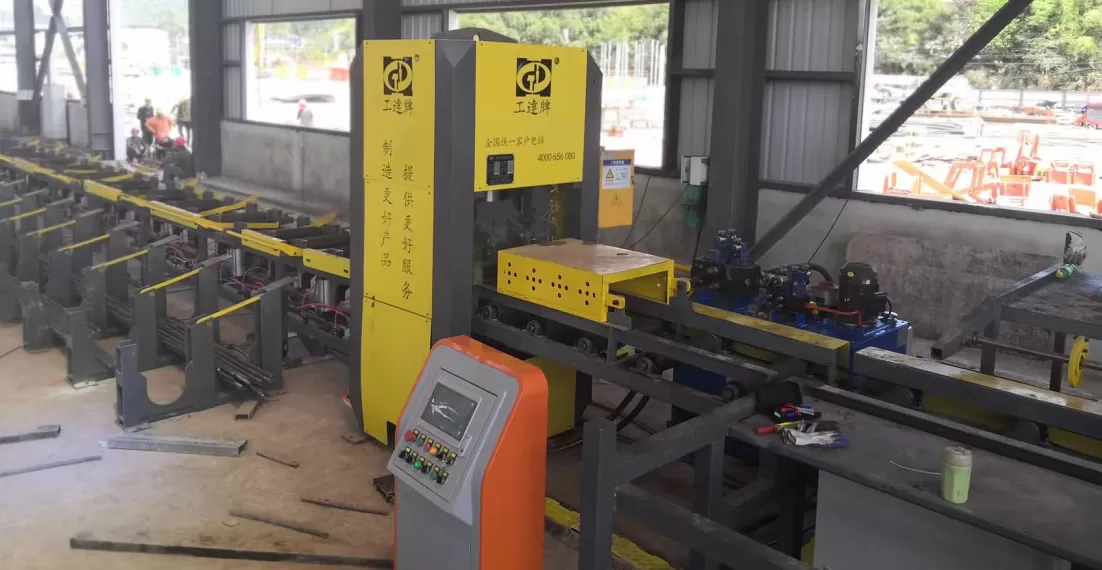

The Gongda GDQX-500 Hydraulic Rebar Shearing Production Line is a high-capacity hydraulic shearing line built for cutting ribbed and round bars in mass production. It is designed for rebar fabricators, precast plants, and steel service centers that need consistent, high-volume cut-to-length output rather than manual or single-stroke shearing.
Gongda (China Rebar Machinery, chinarebarmachinery.com) is based in Hefei, Anhui, China, with the factory rooted in the electromechanical works of Hefei University of Technology. The GDQX-500 is exported worldwide, including to Russia, Spain, Latin America, the Middle East, Southeast Asia, and Africa.
Key Specifications Explained
- Shearing force and width: 3600 kN maximum shearing force with a 500 mm effective cutter width, allowing multi-bar cutting in a single stroke.
- Cutting range: Rebar diameter from 10 mm to 40 mm; cut length from 500 mm to 12000 mm.
- Accuracy: Cutting length error ≤±3 mm/m for repeatable production accuracy.
- Throughput: Shearing frequency of 6–10 cuts per minute with a bar transfer speed of 50 m/min.
- Minimum cut length: ≥500 mm in manual mode; ≥800 mm in automatic mode.
- Discharge: 4-section rebar collection bin (unidirectional 2-stage / bidirectional 4-stage).
- Power and environment: Total line power 47.8 kW, 380 V working voltage, 0.35 MPa working air pressure, operating temperature −5 °C to 50 °C.
- Footprint: 28243 × 2545 × 1800 mm.
Cutting Capacity (HRB400)
Ribbed bars: Ø10: 43 · Ø12: 33 · Ø16: 24 · Ø20: 18 · Ø22: 16 · Ø25: 14 · Ø28: 11 · Ø32: 8 · Ø36: 6 · Ø40: 4 bars per cut.
Round bars: Ø10: 45 · Ø12: 35 · Ø16: 26 · Ø20: 20 · Ø22: 18 · Ø25: 16 · Ø28: 13 · Ø32: 8 · Ø36: 6 · Ø40: 4 bars per cut.
Applications
- Mass production cutting of ribbed and round rebar for construction projects.
- Rebar fabrication shops supplying beams, columns, slabs, and foundations.
- Precast concrete plants requiring repeatable cut-to-length bar output.
- Steel processing and distribution centers handling 10–40 mm bar stock.
Why Buy the GDQX-500 from Gongda
- High single-stroke capacity: up to 43 ribbed Ø10 bars or 4 ribbed Ø40 bars per cut.
- Production consistency: ±3 mm/m length tolerance and 6–10 cuts per minute.
- Long stock handling: 500–12000 mm cut lengths with 50 m/min transfer speed.
- Factory engineering background: rooted in the electromechanical works of Hefei University of Technology.
- Global export experience: machines delivered to Russia, Spain, Latin America, the Middle East, Southeast Asia, and Africa.
Shipping, Certification & Support
- Certification: EAC certification available for applicable markets.
- Shipping terms: FOB Shanghai, Ningbo, or Qingdao.
- Warranty: 12-month warranty with spare parts support.
- Sales support languages: English, Russian, Spanish, Arabic, French, Portuguese, German, and Indonesian.
- Contact: WhatsApp +86 193 9277 7259; website chinarebarmachinery.com.
Technical Specifications — GDQX-500
| Max blade shearing force (kN) | 3600 |
|---|---|
| Effective blade width (mm) | 500 |
| Shearing frequency (per min) | 6-10 |
| Rebar feed speed (m/min) | 50 |
| Rebar shearing length range (mm) | 500-12000 |
| Shearing length accuracy (mm/m) | ≤±3 |
| Bar shearing diameter range (mm) | 10-40 |
| Min manual cutting size (mm) | ≥ 500 |
| Min automatic cutting size (mm) | ≥ 800 |
| Rebar collection bin | 4 stages (2-stage one-way / 4-stage two-way) |
| Total shearing line power (kW) | 47.8KW |
| Working temperature range (°C) | -5℃-50℃ |
| Working voltage (V) | 380V |
| Working air pressure | 0.35 MPa |
| Dimensions | 28243 × 2545 × 1800 mm |
| Number of bars sheared (HRB400) | Deformed / Ø10:43 · Ø12:33 · Ø16:24 · Ø20:18 · Ø22:16 · Ø25:14 · Ø28:11 · Ø32:8 · Ø36:6 · Ø40:4 |
| Number of bars sheared (HRB400) | Plain round bar / Ø10:45 · Ø12:35 · Ø16:26 · Ø20:20 · Ø22:18 · Ø25:16 · Ø28:13 · Ø32:8 · Ø36:6 · Ø40:4 |
Compare with related models
| Model | GDQX-500Best seller | YGT4-15A(BP)+ZD-6M-25 | YGT4-15A(BP) | GQ70A | GQ50A | GD-350ZD |
|---|---|---|---|---|---|---|
| Bar range | 500-12000 | 4-15 | Round bar / 4-15mm | A3 round bar / 70mm | A3 round bar / 6-50mm | W 400 mm × H 350 mm |
| Power | 47.8KW | 7.5KW | 15KW+5.5KW | 11KW | 5.5KW | 4KW |
| Output | 6-10 | 5-8s | 0-80m/min | 26/min | 26/min | 5-90m/min |
| Power supply | 380V | — | 380V / 50HZ | 380V / 50HZ | 380V / 50HZ | — |
Where this machine works
High-rise construction
CNC bending and shearing lines for beams, columns and slab reinforcement.
Precast & prefab plants
Five-head stirrup and forming machines for mass production of cage components.
Bridges & tunnels
Arc benders for tunnel lining, bridge reinforcement and large-radius bends.
Rebar fabricators
Straightening, cutting and thread rolling for custom fabrication shops.
Quality, export packing & after-sales
Run-test
Every machine is run-tested under load and checked against its specification sheet before packing.
Export crating
Anti-rust treatment, film wrapping and reinforced wooden crating protect the machine for sea freight.
Shipping methods
Standard container — small and medium machines (cutters, stirrup machines, welders).
After-sales support
Documentation, remote guidance via video or WhatsApp, and spare parts supply after delivery.
Buying questions
Can you cut and straighten rebar in one machine?
Yes. Our VFD straightening & cutting machines (e.g. YGT4-15A(BP)) straighten Ø4-15 mm round and ribbed bars and cut them to 500-8000 mm with ±5 mm accuracy. For a full line, combine it with a five-head stirrup machine into a straightening-cutting-stirrup production line.
What is the capacity of a CNC five-head stirrup machine?
A five-head machine forms multiple stirrups in one cycle - e.g. ZD-6M-25 processes Ø8x10 bars, Ø10x7, Ø12x5 per stroke at 5-8 seconds per cycle, with ±2 mm length accuracy and ±1° angle accuracy.
