Rebar Processing Machines from China

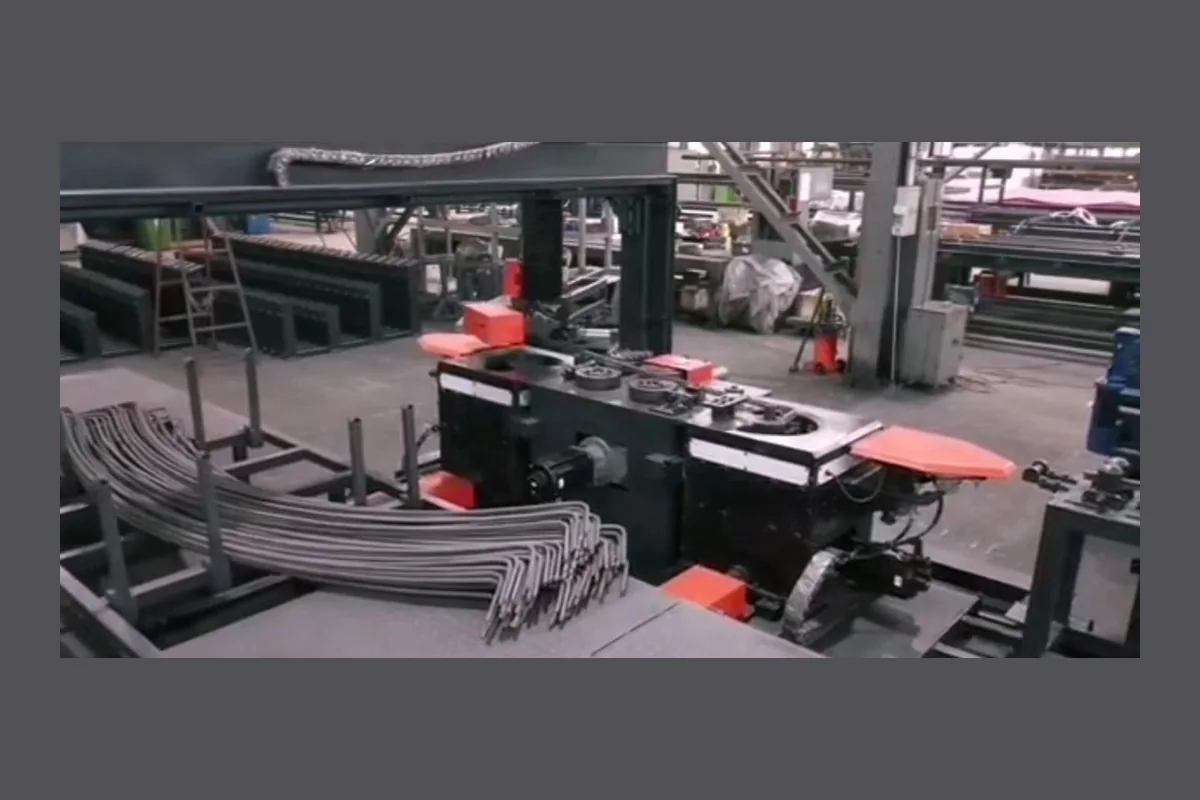

A rebar bending machine bends straight bars into angles (90°/135° etc.). A stirrup bending machine (single-head or five-head CNC) forms closed stirrups/ties from coiled or straight bar. If your work is stirrups and ties, choose a stirrup machine; if you bend straight bars for beams and columns, a CNC bending machine.

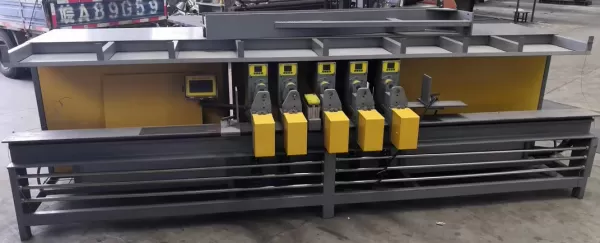

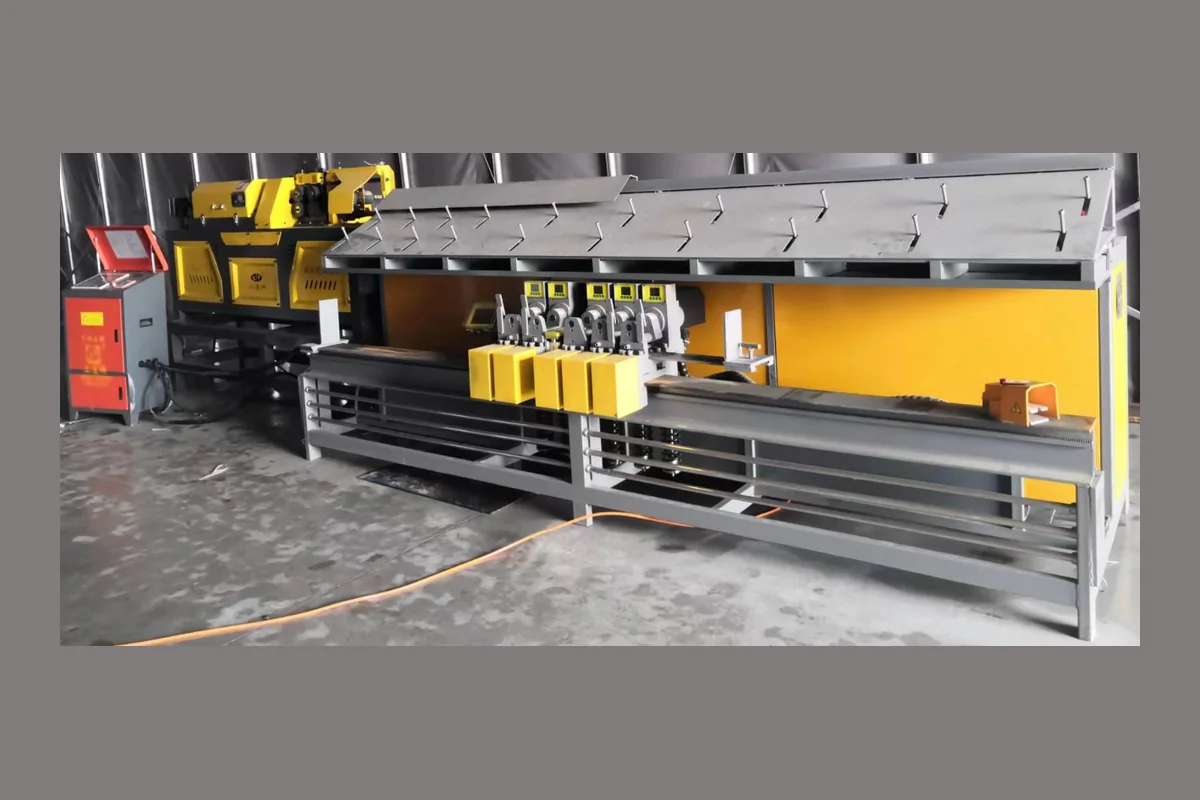

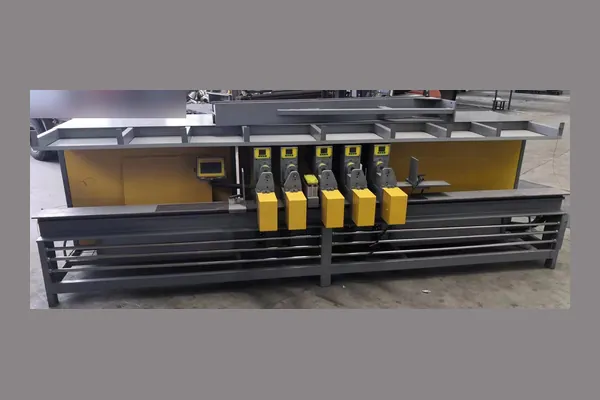

A five-head machine forms multiple stirrups in one cycle - e.g. ZD-6M-25 processes Ø8x10 bars, Ø10x7, Ø12x5 per stroke at 5-8 seconds per cycle, with ±2 mm length accuracy and ±1° angle accuracy.

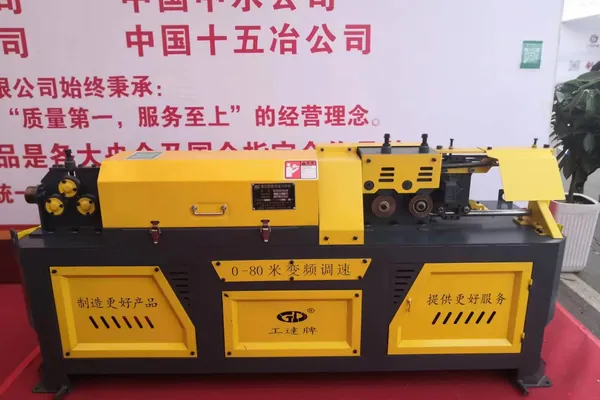

Yes. Our VFD straightening & cutting machines (e.g. YGT4-15A(BP)) straighten Ø4-15 mm round and ribbed bars and cut them to 500-8000 mm with ±5 mm accuracy. For a full line, combine it with a five-head stirrup machine into a straightening-cutting-stirrup production line.

MOQ is 1 machine. For production lines, we quote the complete set. Volume buyers get better pricing.

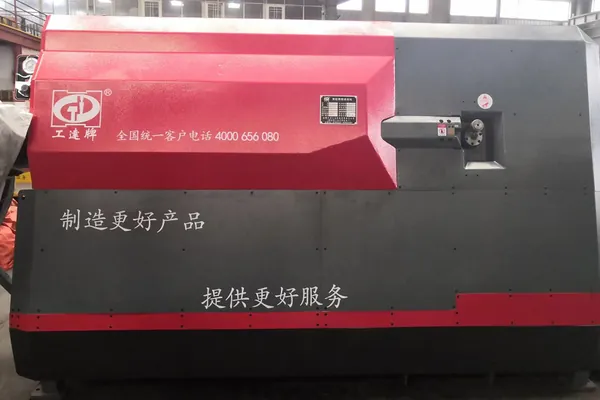

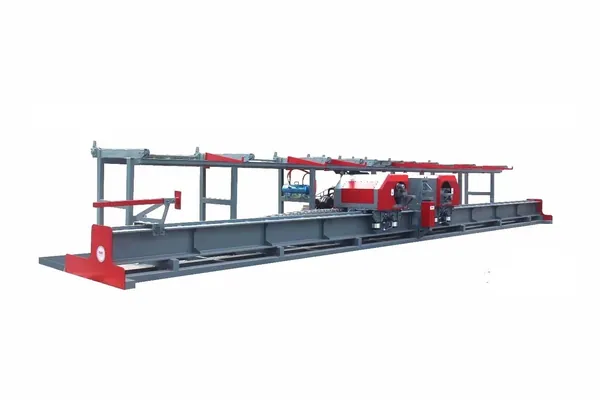

Quick answer: the largest rebar we bend is 65 mm (A3 mild steel) on the GJZD6-65CZ CNC bending machine. For the ribbed grades used on most sites, the practical ceiling drops with the steel grade — always read the diameter against the steel grade, not as a single number.Diameter ladder across our range: 25 mm on the GW25 stirrup bender, 32 mm on the GDLWZX-32 vertical bending center, 40 mm on the S

Quick answer: our GQ70A cuts up to 70 mm A3 round steel, with a shearing force under 160 t. For ribbed rebar the ceiling is lower: 55 mm (Grade II), 50 mm (Grade III) and 45 mm (Grade IV) — the harder the steel, the lower the safe cutting diameter.Capacity by machine: the GQ50A handles 6–50 mm and suits everyday site cutting; the GQ70A handles the 50–70 mm range and is the machine for heavy struct

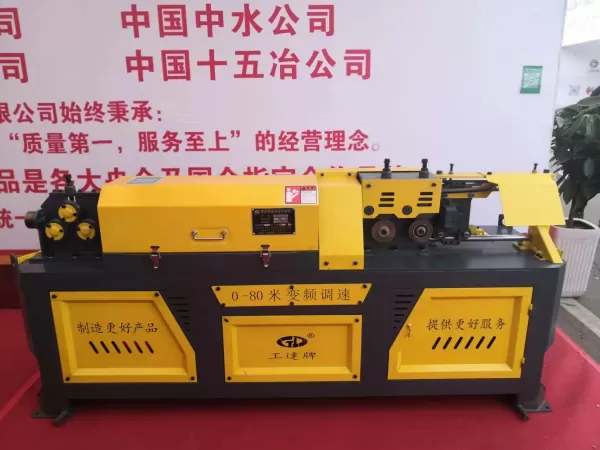

Quick answer: our YGT4-15A(BP) straightens and cuts ribbed rebar from 4 mm to 13 mm, with cut lengths from 500 to 8000 mm and a cutting tolerance of ±5 mm at a line speed of 0–80 m/min.What it does: the machine straightens coiled rebar, then shears it to preset lengths in one continuous pass — no separate cutting step. It is the backbone machine for any fabrication shop cutting stirrup and tie bar

Quick answer: yes — our combined YGT4-15A(BP) + ZD-6M-25 production line straightens 4–15 mm rebar, cuts it hydraulically, and bends it into stirrups in 5–8 seconds per piece, all in one automated pass.Why it matters: a separate straightening machine, cutter and stirrup bender means three handling steps and three operators. A single line feeds coil at one end and delivers finished stirrups at the
