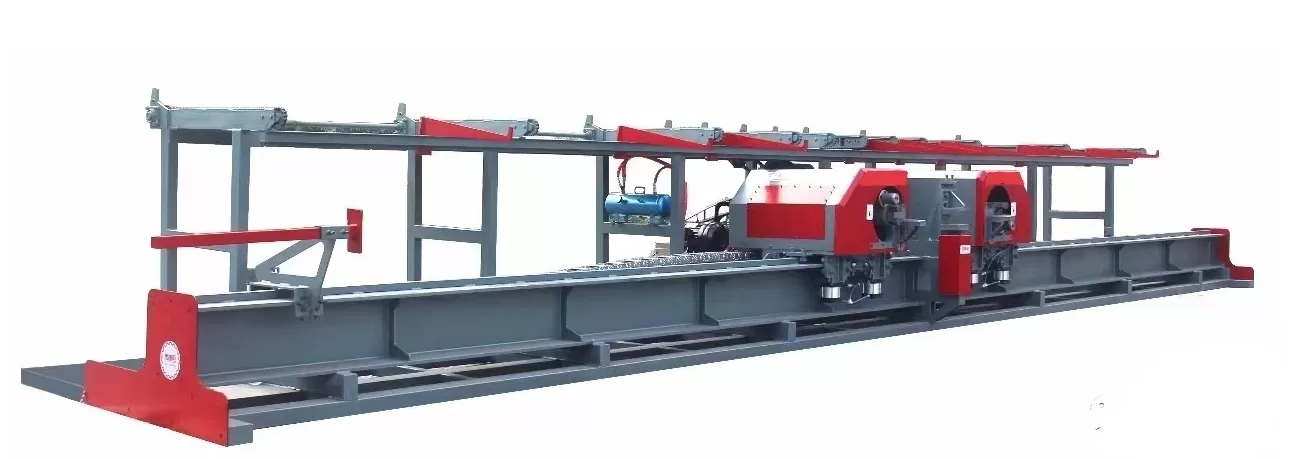

Vertical CNC Rebar Bending Center
Vertical CNC rebar bending center for high-precision bending of bars from 10 to 32 mm with automated positioning.
Also known as
This machine is often called by these names or searched with these phrases.
Key features at a glance
Technical Specifications — GDLWZX-32
| Model | GDLWZX-32 |
|---|---|
| Processing capacity | Ø10mm-Ø32mm |
| Bending angle | -120°-180° |
| Max stirrup outer dimensions | 11m |
| Min stirrup outer dimensions | 500mm |
| Bending power | 4.4KW*2 |
| Travel power | 1.8KW*2 |
| Bending angle accuracy (°) | ±1 |
| Bending length accuracy (mm) | ±1 |
| Dimensions | L 12 m × W 2.1 m × H 1.6 m |
Compare with related models
| Model | GDWHWQ-36 | GDLWZX-32Best seller | GDWQ4-15A | ZD-6M-25 | SKDZWH-36 | GWH50CG | GJZD6-65CZ | GJZD6-50CZ | GW25 | GWH50CZN | ZD-6M-20 | GDPMW-60 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bar range | — | Ø10mm-Ø32mm | Grade III deformed bar / 4-12 | — | 40mm | 50mm | A3 steel / 65mm； | A3 steel / 50mm； | 25mm； | 50mm | — | 16 / 18 / 20 |
| Power | — | 4.4KW*2 | 15KW+5.5KW | 7.5KW | Power: / 4 kW + 2.5 kW (CNC servo) | Model: / YD132M-4/6 | Model: / YEJ132M-4 | Model: / YEJ112M-4 | Power: / 3KW | Model: / YD132M-4 | 8KW | 22kW |
| Output | 48-62 °/S | — | 100m/min | — | Servo control | 30–43 rpm | 4.5 / 7 rpm | 4.5 / 7 rpm | 35 rpm | 0–43 rpm | — | 72°/S |
| Power supply | — | — | — | — | 380V、50HZ | 380V、50HZ | 380V、50HZ | 380V、50HZ | 380V、50HZ | 380V、0-50HZ | — | 380V 50Hz |
Where this machine works
High-rise construction
CNC bending and shearing lines for beams, columns and slab reinforcement.
Precast & prefab plants
Five-head stirrup and forming machines for mass production of cage components.
Bridges & tunnels
Arc benders for tunnel lining, bridge reinforcement and large-radius bends.
Rebar fabricators
Straightening, cutting and thread rolling for custom fabrication shops.
Quality, export packing & after-sales
Run-test
Every machine is run-tested under load and checked against its specification sheet before packing.
Export crating
Anti-rust treatment, film wrapping and reinforced wooden crating protect the machine for sea freight.
Shipping methods
Standard container — small and medium machines (cutters, stirrup machines, welders).
After-sales support
Documentation, remote guidance via video or WhatsApp, and spare parts supply after delivery.
Buying questions
How do I choose between a rebar bending machine and a stirrup bending machine?
A rebar bending machine bends straight bars into angles (90°/135° etc.). A stirrup bending machine (single-head or five-head CNC) forms closed stirrups/ties from coiled or straight bar. If your work is stirrups and ties, choose a stirrup machine; if you bend straight bars for beams and columns, a CNC bending machine.
What is the capacity of a CNC five-head stirrup machine?
A five-head machine forms multiple stirrups in one cycle - e.g. ZD-6M-25 processes Ø8x10 bars, Ø10x7, Ø12x5 per stroke at 5-8 seconds per cycle, with ±2 mm length accuracy and ±1° angle accuracy.
