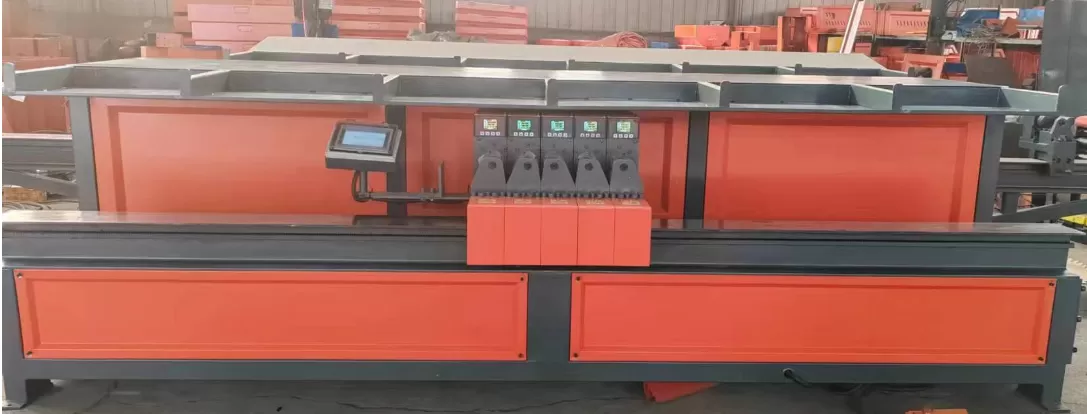

CNC Five-Head Stirrup Bending Machine

Overview

The Gongda ZD-6M-20 CNC Five-Head Stirrup Bending Machine is a heavy-duty, automated rebar processing solution built for high-output stirrup and hoop production. It combines CNC control with hydraulic automatic locking and a total installed power of 8 kW, making it a practical choice for rebar fabricators, precast plants, and construction supply operations that need consistent, repeatable bends at volume.

Gongda (China Rebar Machinery, chinarebarmachinery.com) is based in Hefei, Anhui, China, with factory roots in the electromechanical works of Hefei University of Technology. The company exports rebar processing machines worldwide, including Russia, Spain, Latin America, the Middle East, Southeast Asia, and Africa.

Key Specifications Explained

• Installed power: 8 kW total — matched to the five-head bending action for continuous production cycles.
• Hydraulic pressure: 5–16 MPa/min, paired with hydraulic automatic locking of the machine head for stable, repeatable clamping.
• Pneumatic pressure: 0.4–0.8 MPa/min.
• Side length tolerance: ±1 mm — a tight accuracy band for consistent stirrup geometry.
• Working temperature: −5 to 60 °C, suitable for a wide range of workshop environments.
• Processing capacity (bars per cycle): Ø8: 11 · Ø10: 9 · Ø12: 6 · Ø14: 4 · Ø16: 3 · Ø18: 1 · Ø20: 1.
• Minimum stirrup side length (inner diameter): 150 × 150 mm.
• Dimensions (L × W × H): 8000 × 1320 × 1200 mm.

Applications

The ZD-6M-20 is designed for producing stirrups and hoops used in reinforced concrete columns, beams, piles, and precast elements. Its five-head configuration supports multi-size batch work, from small-diameter high-count runs (Ø8 at 11 bars per cycle) to larger-diameter single-bar processing (Ø18 and Ø20 at 1 bar per cycle). The 150 × 150 mm minimum inner side length allows compact stirrup profiles, while the ±1 mm tolerance supports projects where dimensional consistency matters.

Why Buy This Model from Gongda

• CNC control with hydraulic automatic locking for repeatable bending and reduced manual intervention.
• Five-head capability for efficient multi-stirrup production in a single machine.
• Export-ready manufacturing backed by a factory rooted in university electromechanical works.
• EAC certification available for buyers requiring Eurasian market compliance.
• Worldwide export experience across Russia, Spain, Latin America, the Middle East, Southeast Asia, and Africa.

Shipping, Certification & Support

Gongda ships FOB Shanghai, Ningbo, or Qingdao. The ZD-6M-20 is covered by a 12-month warranty with spare parts support. Sales and technical communication are available in English, Russian, Spanish, Arabic, French, Portuguese, German, and Indonesian. For pricing, lead time, and configuration details, contact WhatsApp +86 193 9277 7259 or visit chinarebarmachinery.com.
